De-Awner

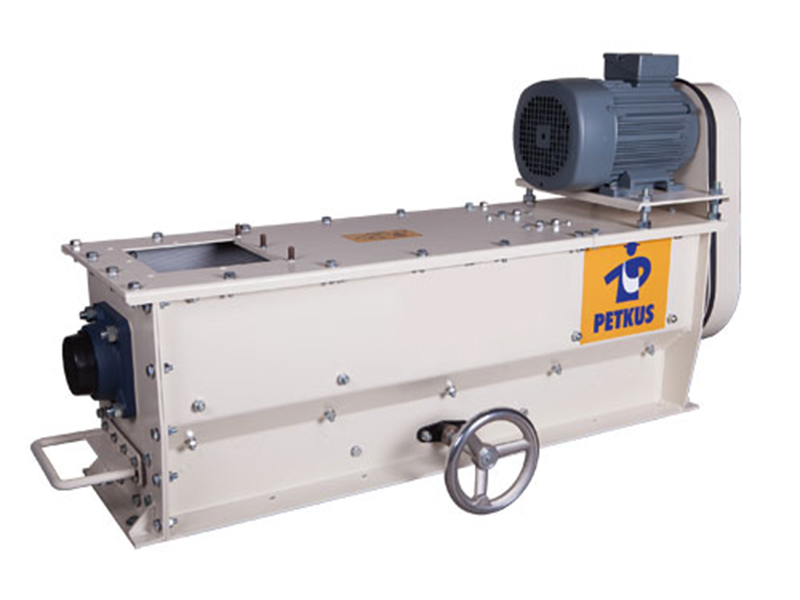

Before barley, spelt or oats can be industrially processed they have to be hulled, de-awned or polished. The PETKUS De-Awner is a special machine that gently removes awns, husks, clippings or beards, dissipates clumps and polishes seed. It is a robust and wear-resistant construction. The rotating pin shafts works at variable speed, the process intensity is thereby regulated by adjusting the speed and the flow rate.
Description
Before barley, spelt or oats can be industrially processed they have to be hulled, de-awned or polished. The PETKUS De-Awner is a special machine that gently removes awns, husks, clippings or beards, dissipates clumps and polishes seed. It is a robust and wear-resistant construction. The rotating pin shafts works at variable speed, the process intensity is thereby regulated by adjusting the speed and the flow rate.
Characteristics
- Robust and wear-resistant construction
- Adjustable processing intensity the two stage RPM settings and its infinitely adjustable bottom scraper
- Bolted housing made of sheet steel
- Agitator shaft available optionally with rounded or square pin beaters gentle to products
- Drive unit with electric motor
- Optional with exchangeable wear plates for additional friction
Technical Data:
| SE03 | SE05 | SE10 | SE20 | |||||||
| Length | (mm) | 1150 | 1180 | 1570 | 1570 | |||||
| Width | (mm) | 310 | 800 | 1010 | 1010 | |||||
| Height | (mm) | 580 | 485 | 700 | 700 | |||||
| Diameter | (mm) | 600 | 600 | 700 | 900 | |||||
| Weight | (kg) | 140 | 220 | 300 | 320 | |||||
| Drive Capacity Standard | (kW) | 2.2 | 5.5 | 7.5 | 15.0 | |||||
| RPM of Beater Shaft | (RPM) | 850/1050 | 750/1000 | 760/960 | 760/960 | |||||
| Output | (t/h) | |||||||||
| Grain | 3 | 5 | 10 | 20 | ||||||
| Brewing Barley | 3-5 | 5-10 | 10-20 | 20-30 |

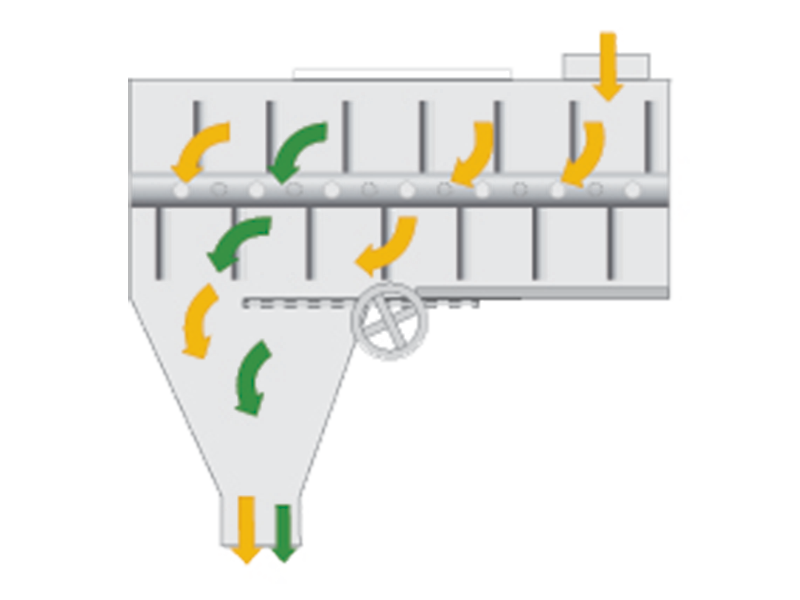

Technical Diagram:
Downloads:
